2016 cell phone two way interphone walkie talkie 20km,Wireless Intercom Digital Two Way Radio
Handheld radio
Walkie & talkie
Dual band walkie talkie
Ham two way radio
UV-5R
UV-5RA / B / C /D / E
Cheap two way radio
Cheap dual band walkie talkie
Ham radio
Amateur Radio
Interphone
Walkie talkie
Walkie-talkie
Walky talky
2 way radio
Two way radio
CE,ROHS approval Radio
FCC approval Walkie talkie
Two way transceiver
Two way interphone

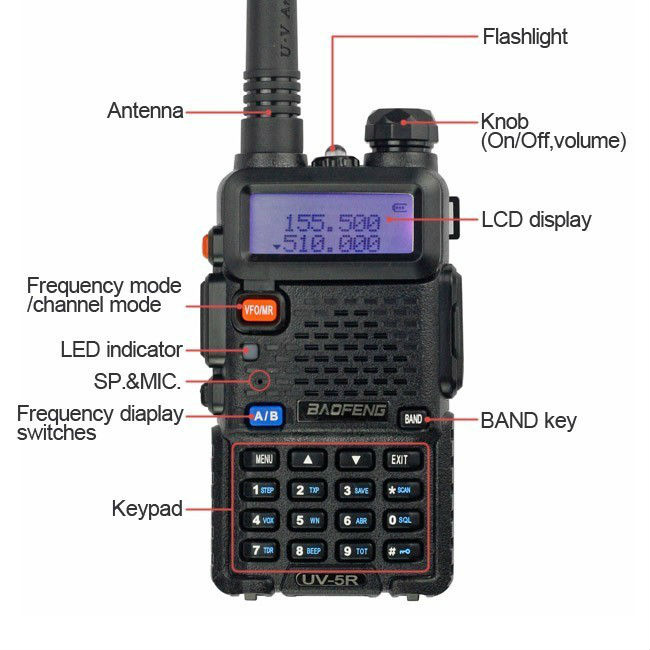

MAIN FUNCTIONS:
-Dual band,dual display -Shortcut menu opration mode
-Emergency Alarm -VOF & Memory channels scan
-Time-Out Timer(TOT) -Low Battery Alert
-Battery Save Function -Large LCD Display

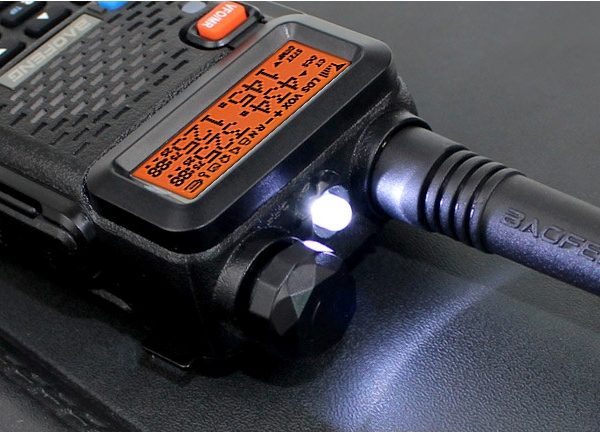

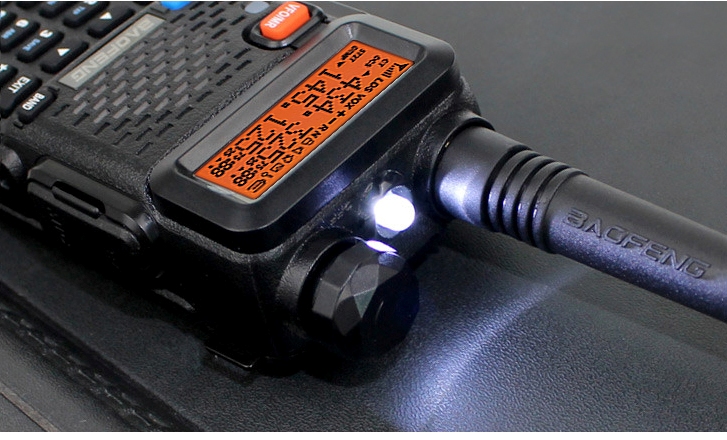

-LED Flashlight -Busy channel lock-out(BCLO)
-Channel Monitor -High/Low TX power selectable

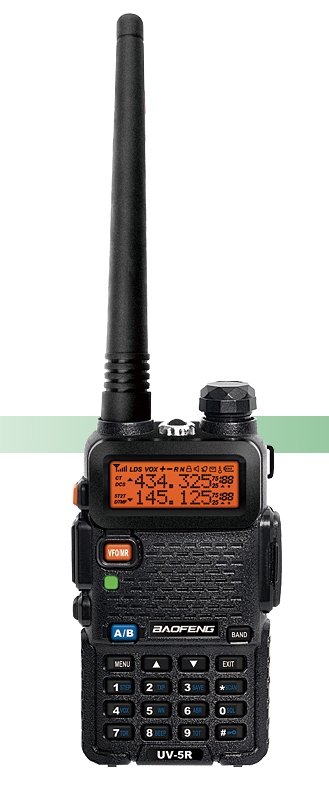

5W Baofeng UV-5R Two Way Radio VHF UHF Dual Band Professional FM Transceiver
| General | ||
| Frequency Range | 65MHz-108MHz(Only commercial FM radio reception) VHF:136MHz-174MHz(Rx/Tx) UHF:400MHz-520MHz(Rx/Tx) |
|
| Memory Channel | Up to 128 Channels | |
| Frequency Step | 2.5KHz/5KHz/6.25KHz/10KHz/12.5KHz/25KHz | |
| Operated Voltage | DC 7.4V | |
| Battery capacity | 1800MAh Li-ion | |
| Duty cycle | 03/03/54min.(Rx/Tx/Standby) | |
| Frequency Stability | ±2.5ppm | |
| Operated Temperature | -20°C to +60°C | |
| Antenna Impedance | 50Ω | |
| Dimensions (L×W×H) | 55×32×108mm (not including antenna) | |
| Weight | 110g (not including battery & antenna) | |
| Consumption in standby | ≤75mA | |
| Communication Range | about 5-8km | |
| Receiver | Wide band | Narrow band |
| Sensitivity (12dB SINAD) | ≤0.20 uV | ≤0.20 uV |
| Intermodulation | ≥60dB | ≥60dB |
| Adjacent channel selectivity | ≥65dB | ≥60dB |
| Maximum deviation | ≤±5kHz | ≤±2.5kHz |
| Audio Power Output | 1W | 1W |
| Transmitter | Wide band | Narrow band |
| RF Power Output | 5W | |
| Type of modulation | FM | |
| Maximum deviation | ≤±5KHz | ≤±2.5KHz |
| Emission class | 16kΦF3E | 11kΦF3E |
| Spurious Emission | <-60dB | <-60dB |
5W Baofeng UV-5R Two Way Radio VHF UHF Dual Band Professional FM Transceiver
Packing Items: 1 X Tansceiver Unit
1 X Bettery Pack
1 X Antenna
1 X Adapter
1X Belt Clip
1X Handstrap
1X Earpiece
1X User’s Manual

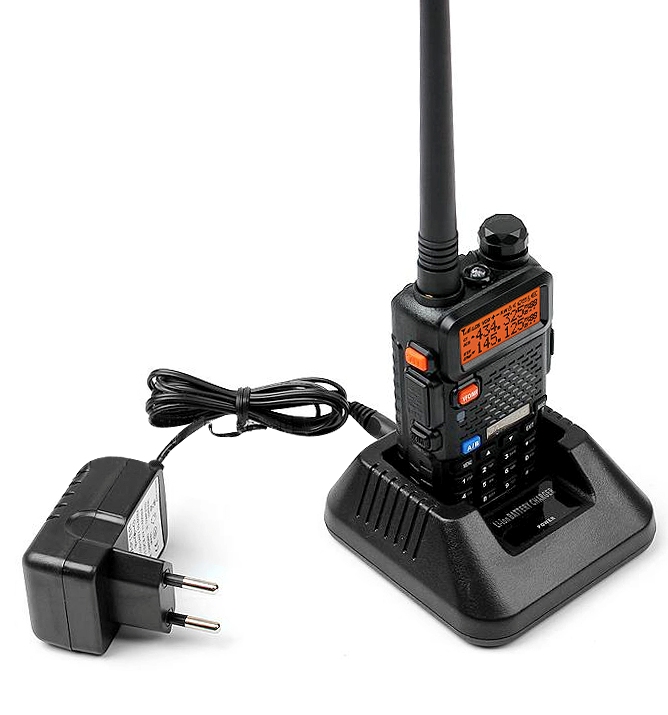

1X Drop-in Charging Tray
